TUTORIAL1 - STEP1 Here is the final image I'll show how to create In this tutorial I will show you how to create a tree with falling branches on one of its sides. |
 |

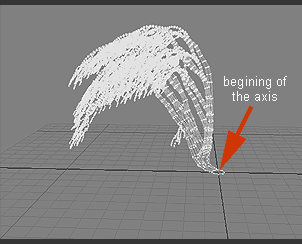

The most important thing you should know is that tree always grow from the center of axis (0,0,0). You should remeber this when you're designing a tree shape with modeler. |
 |
This is a shape I designed in modeler. As you can see I moved all poiygons on the left side (-X) to get all branches endings there. The tree will grow from the origin of axis to points on surface of created object. You can download this object here. Lets start TreesDesigner and see what kind of tree we get from this object. First we should put our shape into background layer. |
 |
OK. This is the default tree we got from this object. It is
nice ;-) but I need a tree with falling branches. We need to modify it.
If TreesDesigner panel is not visible hit 'n' for numeric panlel. TreesDesigner

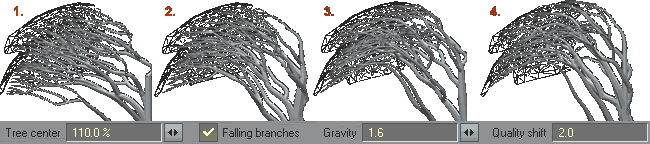

uses Non-modal panel and you will see all your changes in real time (nearly). 1. We need to move 'tree center' up. Tree center is a point from which branches will grow to your shape. Below the tree center, branches will grow from the trunk; this is the basic idea of tree creation. This setting has a very big influence on the tree, you should set it first. For this tutorial set the tree center to 110%. You should get something similar to image 1 below. 2. Next we need to check 'Falling branches'; when it's checked, gravity has a great infuence on branches and you can bend branches by selecting it. 3. Play a bit with gravity; you can set a negative value to achieve a different type of tree. I set this value to 1.6. 4. If you want to have more forks at the branch tips then near trunk use 'Quality shift'. Set its value to more then 1 to get smallest segments near branches tips and larger near trunk. |
 |
|
 |
When you have set all parameters and you are satisfied with your tree you can change 'Seed' to get the same kind of tree but with different branches. Try it. To complete our tree we need to make some textures for it. All branches are UV mapped so texturing is very easy. Simply make a cylindrical texture for one branch. At the top of this texture is the end of the branch. I made a green gradient because branches are younger at the tip. |
 |

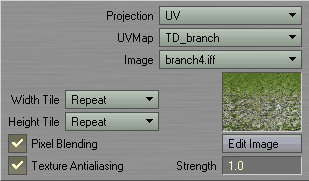

In texture editior select UV projection and TD_branch UV map. Now you can freeze the tree at any resolution you want; you must freeze it if you want to use LeavesGenerator because it isn't useful on NURBS. |
